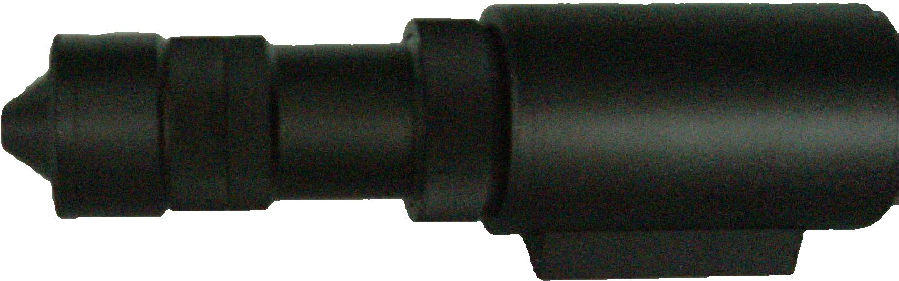

Z30G/Z60G On-line High Temperature Infrared Thermal Imager
Z30G/Z60G is an on-line high-temperature infrared thermal imager with compact structure, fully sealed design, dustproof, waterproof, anti-electromagnetic interference, and real-time display of target working conditions. It is a product for high-temperature on-line monitoring in metallurgical steel industry. By detecting equipment through Z3C on-line high-temperature infrared thermal imaging system, problems can be found early, production safety operation can be ensured, and process flow can be optimized, product quality can be improved, service life of equipment can be prolonged, and energy consumption of enterprises can be reduced.
Specializing in testing blast furnace, hot blast stove, converter, rotary furnace, steam system, electrical cabinet, substation and raw material chemical equipment;

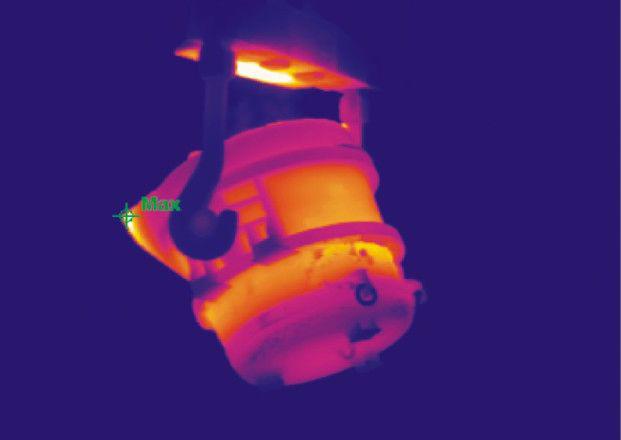

Diagnose problems such as erosion and ablation of metallurgical furnace lining, damage of torpedo tank lining, damage of ladle and ladle lining;

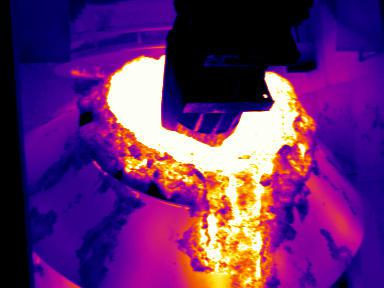

It can monitor the quality of blast furnace molten steel, molten iron, billet, steel plate and other issues;

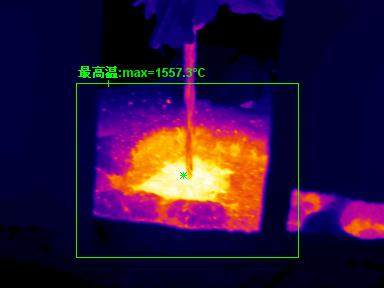

Quality control can be carried out for the process links such as slag discharge at ladle nozzle to improve product yield and quality;
Supporting advanced infrared analysis software to analyze high-temperature targets in real time and generate reports.
Z30G/Z60G On-line High Temperature Infrared Thermal Imager | |
explorer | |
Detector type |
Uncooled focal plane |
wavelength coverage |
8~14μm |
Pixel number |
384×288/640×480 |
Pixel size |
17μm |
FPS |
50Hz |
Temperature measurement performance and image performance | |
Temperature measuring range |
0℃-1500℃ |
Temperature measurement accuracy |
2℃ or 2% |
Thermal sensitivity (NETD) |
|
viewing angle |
9.4°×7.1° |
angular resolution |
0.43mard |
Clear imaging range |
0.3m~∞ |
Temperature measuring mode |
Support global high and low temperature tracking, global average temperature, point, line, rectangle, circle, ellipse, polygon and other temperature measuring modes, and add up to 20 temperature measuring objects. All temperature measuring objects can independently set alarm threshold range, sampling period and draw historical temperature curves. |
High and low temperature alarm |
The control terminal gives an audible and visual alarm and records the log. When the alarm is triggered, the temperature data and image snapshot can be automatically stored. Camera-side alarm output level indication |
Electron double focus |
2X, 4X, full screen |
Data storage | |
Report generation |
Word format with content selection wizard |
Temperature data stream playback |
The playback is time stamped, and the playback speed can be adjusted, frozen and played circularly. When playing, the image can be processed and super-resolution images can be output. |
running log |
Automatic recording, automatic saving |
network connections | |
data interface |
100M Ethernet, supporting TCP, UDP, IP, DHCP, ARP, ICMP and other protocols. |
IP allocation |
Dynamic IP and static IP, and the control terminal is integrated with DHCP Server. |
environmental parameter | |
Working temperature |
-30~60℃ |
storage temperature |
-40~80℃ |
Shell protection |
IP54 |
Electrical interface | |
serial port |
RS232, which can forward the control instruction of PTZ. |
Yuntai control |
Pan/tilt can be controlled through computer serial port or camera serial port, with built-in PELCO-D/P protocol verification. |
Power Supply |
The power adapter inputs AC 100 ~240V, outputs DC 12V/1.25A, and uses aviation plug with self-locking. |
power consumption |
2.0W |
Physical attribute | |
measure |
150mm(L)×64mm(W)×62mm(H) |
weight |
0.58kg (excluding lens) |
Installation interface |
1/4-20 standard tripod interface |
