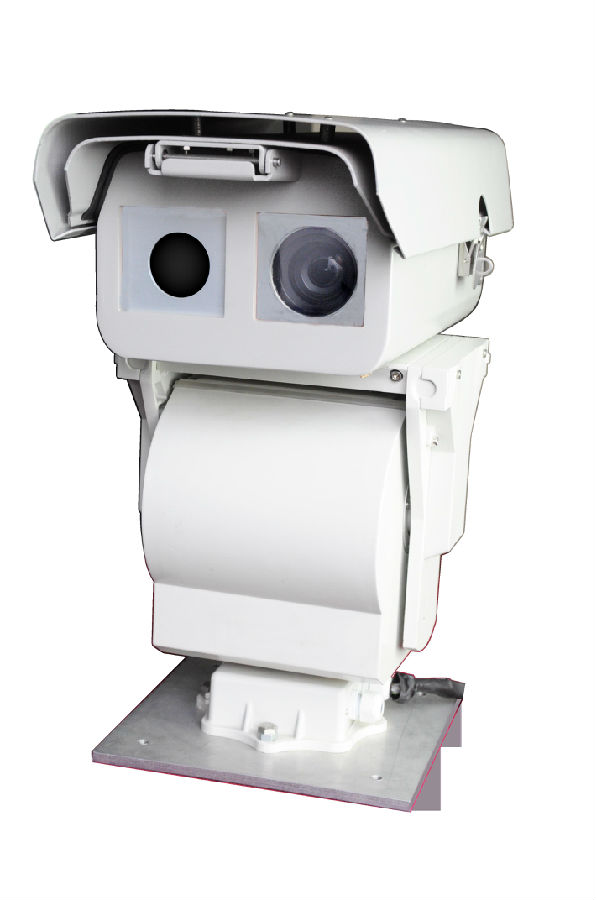

Z31/Z61 Dual-bin Online Intelligent Infrared Monitoring System
Using high sensitivity uncooled focal plane core devices;
Remote control, 24-hour online monitoring, automatic inspection;
Infrared and visible light integrated real-time monitoring to accurately locate hidden trouble points;
Optical fiber output data, which can be transferred to WIFI/ Ethernet output;
Auto-focusing, clear imaging;
Infrared image full digital processing, automatic report function;
Automatic early warning, which can automatically send short messages to maintenance personnel when faults are found to win maintenance time;
Anti-interference properties such as voltage resistance, surge voltage impact resistance, lightning strike resistance and electromagnetic interference meet international standards to ensure long-term stable operation of the equipment.
Z31/Z61 Dual-bin Online Intelligent Infrared Monitoring System | |
Detector type |
Uncooled focal plane |
wavelength coverage |
8~14μm |
Pixel number |
384×288/640×480 |
Pixel size |
17μm |
Temperature measuring range |
-20℃-350℃ |
Temperature measurement accuracy |
2℃ or 2% |
Thermal sensitivity (NETD) |
|
viewing angle |
42°×32° |
angular resolution |
1.13mrad |
Visible light camera | |
Pixel number |
1280×960 |
focal distance |
4.7~94mm, 22X optical zoom |
Horizontal field angle |
58.3o~3.2o (wide angle ~ telescopic) |
aperture |
F1.6~F3.5 |
Focusing mode |
Electric zoom, autofocus |
minimum illumination |
Color 0.05Lux, black and white 0.01Lux. |
cradle head | |
spin velocity |
Horizontal: 0.01 ~ 60/s, vertical: 0.01 ~ 30/s. |
Rotation range |
Horizontal: 0 ~ 360, vertical:-75 ~+40. |
Preset bit number |
80 |
Preset bit precision |
±0.1° |
Automatic cruise |
Support multi-preset cruise and horizontal constant speed cruise. |
Temperature measurement performance and image performance | |
Temperature measuring mode |
Support global high and low temperature tracking, global average temperature, point, line, rectangle, circle, ellipse, polygon and other temperature measuring modes, and add up to 20 temperature measuring objects. All temperature measuring objects can independently set alarm threshold range, sampling period and draw historical temperature curves. |
Data storage | |
Report generation |
Word format with content selection wizard |
Temperature measuring object |
The temperature measuring object configuration can be stored in and read from a file. The representative temperature (e.g. maximum temperature) data of each object can be saved to a file. |
running log |
Automatic recording, automatic saving |
network connections | |
data interface |
100M Ethernet, supporting RTP, RTCP, RTSP, ONVIF, FTP, TCP, UDP, IP, DHCP, ARP, ICMP and other protocols. |
IP allocation |
Dynamic IP and static IP, and the control terminal is integrated with DHCP Server. |
environmental parameter | |
Working temperature |
-30~60℃ |
storage temperature |
-40~80℃ |
Physical attribute | |
measure |
490mm(L)×274mm(W)×445mm(H) |
weight |
20 kg |
