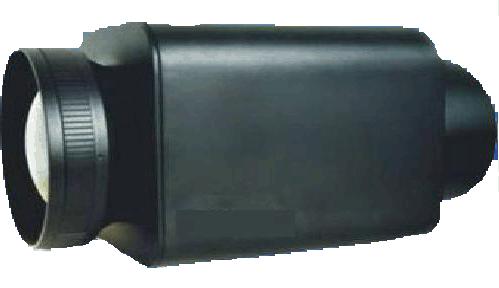

S303 Remote Monitoring Dual-field Infrared Thermal Imager

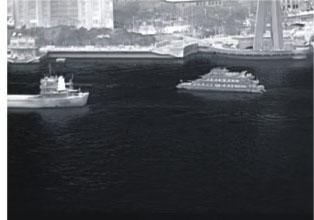

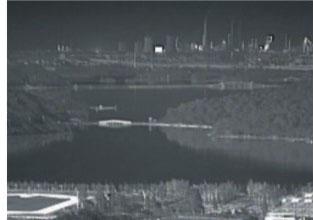

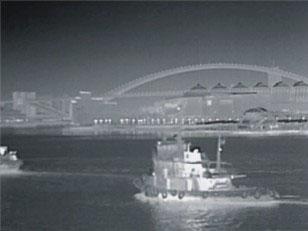

S303 adopts the latest high-performance uncooled detector and dual-field lens, which is a fixed infrared thermal imaging system for remote monitoring, and can provide sharp-cut and clear thermal images in the case of total darkness, mist or smoke. The wide field of view is mainly used for long-range target search, and the narrow field of view mainly observes the details of the target. It has stable performance, stable system and clear imaging effect, and can be widely used in large-range search and surveillance fields such as border defense, coastal defense and long-range search.

Product features

Large aperture, long focal length, aspheric infrared optical system, improve the light energy;

The switching speed of double fields of view is fast, so that the target can not be lost during switching, and the target can be quickly searched and accurately identified;

Optional uncooled infrared detector with high sensitivity of 384×288 or 640×480 pixels;

Unique infrared image processing circuit and intelligent image system, as well as high-performance infrared detector make the image clearer and the effect is excellent;

It can be used for urban security monitoring alone, and can also be integrated for coastal and frontier monitoring and air observation systems, etc. It is an ideal homeland security defense product.

Compact structure, durability and high stability.

technical parameter

S303 Remote Monitoring Dual-field Infrared Thermal Imager
Image parameter
Detector	Uncooled focal plane
Pixel number	three84×288/640×480
Pixel size	17μm×17μm
Working band	7.5～13.5μm
Optical performance
Focal distance	120mm/40mm(F#1.0) is standard, and optional lenses: 135/45mm, 150/50mm, 180/60mm and 240/60mm.
Far (narrow) field of view angle	3.1°2.3°/5.2°3.9°
Near (wide) field of view angle	9.2°6.9°/15.6°11.7°
Focusing mode	Double field of view switching, electric focusing
Imaging performance
N E T D	≤45mK＠25℃
Image frame rate	25Hz
video output	Ethernet /TTL/LVDS digital video or PAL/NTSC analog video (optional)
image display	256 gray levels, 10 sets of color palettes
picture control	Automatic/manual adjustment of brightness and contrast
Power source and interface
Electric source	AC 220V adapter, 50Hz /DC12V
Power consumption	≤4W
control interface	Ethernet /TTL/LVDS digital interface or RS232/RS485/RS422/ (optional)
Circumstance parameter
Working temperature	-40℃ ~+50℃ (-40 ℃~+60℃ optional)
storage temperature	-40℃～+60℃
Humidity	Work and storage at 10% to 95%, non-condensing.
Seal	IP54
acclimatization	It conforms to GB-T 19870-2005 standard and can implement GJB requirements.
Physical particularity
outline dimension	320mm×170mm×170mm
Heavy weight	6kg
