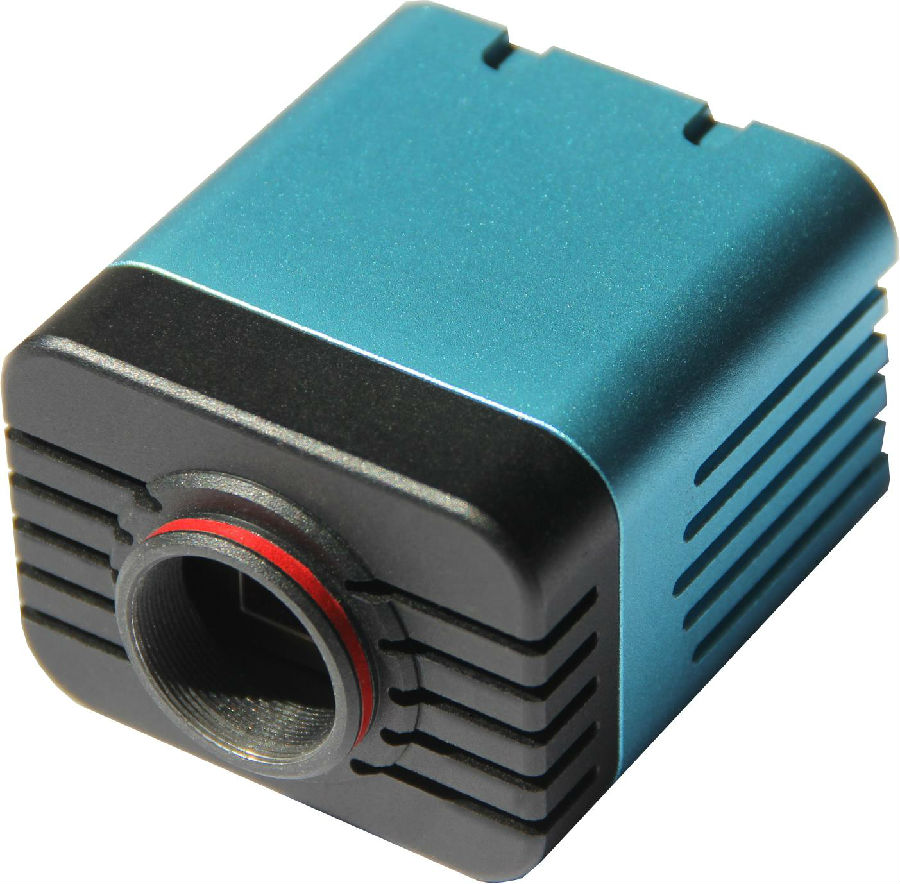

SW60 short-wave uncooled infrared movement

Product description

SW60 movement component adopts the world's latest technology, namely, indium gallium arsenic uncooled focal plane detector, which is equipped with ultra-large-scale and extensible FPGA circuit, integrates unique image processing and pattern algorithm, and provides SDK to facilitate various extended applications.

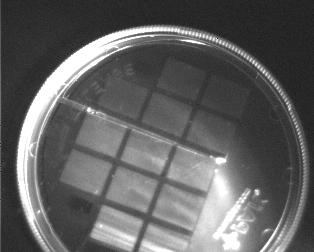

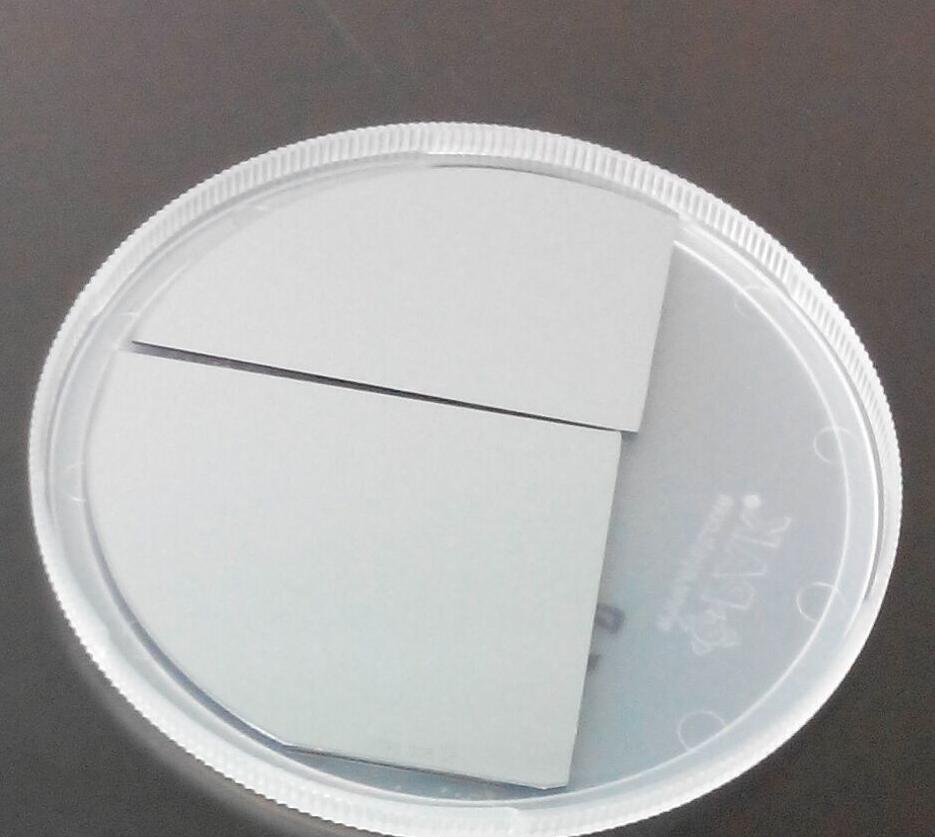

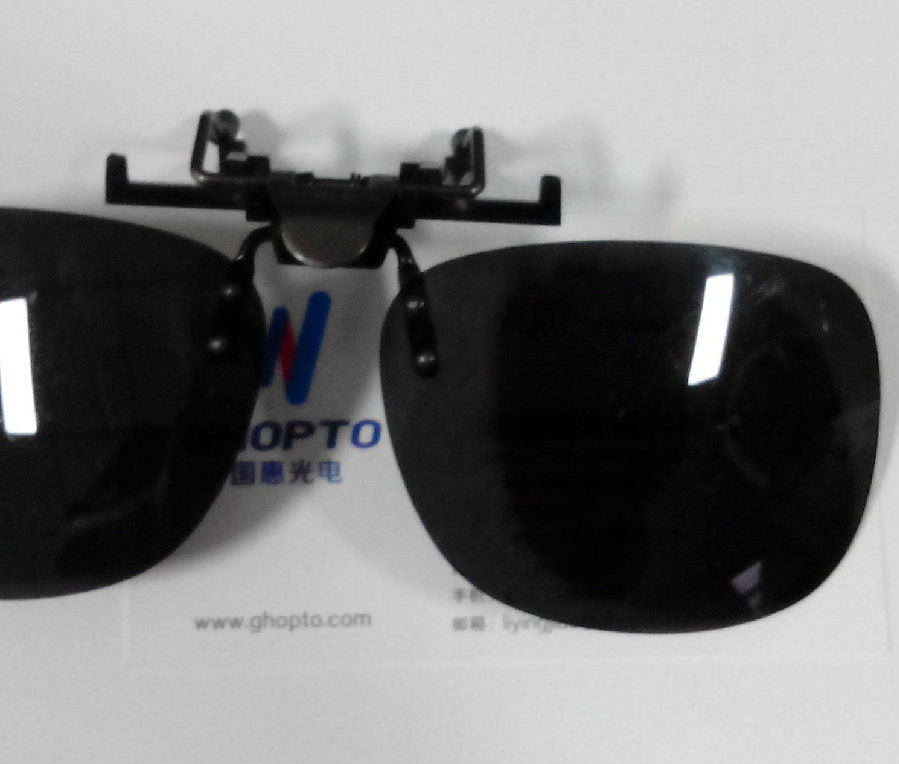

SW60 works in the band of 0.9 um-1.7 um, which can overcome the disadvantage that long-wave infrared devices can't work under the condition of dense fog and glass shielding, and can well complete camouflage identification, smog penetration, water search and rescue and so on.

A variety of lenses can be selected, which can meet the application in space remote sensing, forest fire prevention, energy-saving monitoring, night vision and criminal investigation, military defense and maritime search and rescue.

Product features

This machine comes with SD card storage module, which realizes 15HZ full digital video recording. Convenient for local video recording and offline playback.

Support analog PAL video output, add digital interface, and realize all-digital network or USB transmission interface;

Provide SDK to facilitate users' secondary development.

Low power consumption:

Single-point, multi-point correction and bad point correction can be done online.

It can be corrected online in real time, without money or auxiliary software operation.

technical parameter

SW60 short-wave uncooled infrared movement
Detector
Detector	Indium gallium arsenic uncooled focal plane array
Pixel number	640×512
Pixel size	25μm×25μm
Response band	0.9μm～1.7μm
Imaging performance
Frame frequency	60Hz
City image area	16×12.8mm
Analog video output	PAL/VGA
Analog interface	BNC interface
Control work energy
Digital interface	RJ45 network port USB
Brightness/contrast	Automatic/manual
Electron zoom	2 times /4 times
Electric source system
Power supply input voltage	DC 3.3～5.5V is standard.
Power consumption	≤2.0W
Circumstance parameter
Working temperature	-30℃～+50℃
storage temperature	-45℃～+70℃
Physical parameter number
Chi Cun	90mm (length) x55mm (width) x50mm (height)
Heavy weight	About 200g (excluding lens)
Lens interface	C kou
