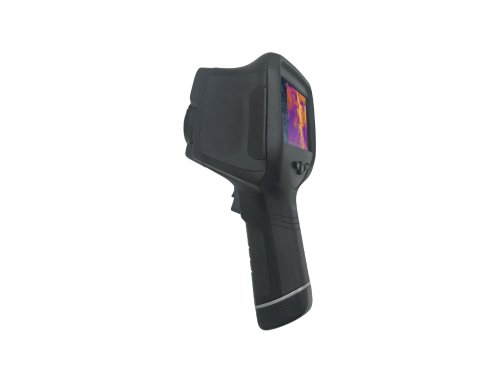

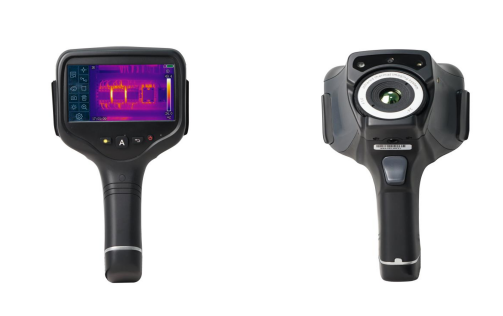

L30 handheld infrared thermal imager

Product description

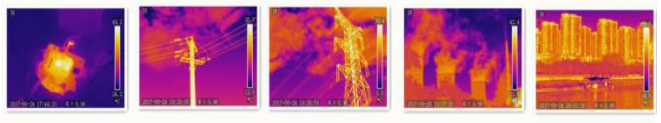

The L30 handheld camera is lightweight, portable, compact, and rugged. Automatically capture the highest/minimum temperature points. It equipped with a 4.3-inch high-brightness high-resolution TFT touch screen to achieve high-quality imaging screen. The operation menu is intuitive and concise, and the focus-free lens, even novices can quickly grasp the shooting essentials, which are widely used in power testing, building inspection, iron and steel metallurgy, industrial control, electronic manufacturing, glass manufacturing, petrochemical spot inspection and other fields.

technical parameter


Probe type	Longwave infrared non-cooled focal plane array
resolution	384x288
Working spectrum	8-14μm
Image frame rate	50Hz
Thermal Sensitivity (NETD)	≤0.06℃@30℃
Field of view (FOV)/minimum imaging distance	40°×30°/0.3m
Spatial Resolution (IFOV)	1.3mrad
Focus mode	Manual
Digital zoom	1-4x continuous digital zoom
Image display
Built-in visible digital camera	5 million visible pixels, 1 LED fill light
display screen	4.3" TFT fully bonded touch screen
Image mode	IR image, visible image, picture-in-picture image fusion, multiband dynamic imaging (MSX)
Temperature measurement function
Temperature measurement range	-20℃- +650℃
Temperature measurement accuracy	±2℃ or ±2%（Range of readings）take the max value
Temperature measurement mode	Maximum temperature, minimum temperature capture, average temperature measurement, temperature alarm (sound, color)
Emissivity correction	The emissivity can be adjusted from 0.01 to 1.0 or corrected by means of a predefined substance emissivity table
Background temperature compensation	Automatic, based on the background temperature entered
Atmospheric transmittance correction	Automatic, based on input distance, relative humidity, ambient temperature
Temperature alarm	High/low temperature color alarm
Establishment
Image Control Color palette (12 types), Image Adjustment (Auto/Manual)	Image Control Color palette (12 types), Image Adjustment (Auto/Manual)
Image manipulation and storage
Storage capacity 16G Micro SD card , support up to 32G	Storage capacity 16G Micro SD card , support up to 32G
Image storage mode saves both infrared and visible images	Image storage mode saves both infrared and visible images
Infrared image format JPEG format, with infrared raw measurement data image; MPEG4 format with infrared raw measurement data recording	Infrared image format JPEG format, with infrared raw measurement data image; MPEG4 format with infrared raw measurement data recording
Visible image format JPEG format, MPEG4 format, including fusion	Visible image format JPEG format, MPEG4 format, including fusion
Laser pointer
Laser positioner	Red, 1mw/635nm, Secondary level, IEC60285
Power system
Battery type Lithium battery, rechargeable	Battery type Lithium battery, rechargeable
Battery operating time 4 hours continuous operation	Battery operating time 4 hours continuous operation
Charging type: Smart charger charging or random (AC power adapter or 12V in-car power) charging	Charging type: Smart charger charging or random (AC power adapter or 12V in-car power) charging
Power saving mode Automatic sleep, automatic shutdown	Power saving mode Automatic sleep, automatic shutdown
Battery type Lithium battery, rechargeable	Battery type Lithium battery, rechargeable
Environment parameters
Operating temperature	-20℃~50℃
Storage temperature	-40℃~70℃
humidity	≦95％（Non-condensing）
Degree of protection	IP54
Drop resistant	2m
Shock resistant	25g(IEC60068-2-29)
Vibration resistant	2g(IEC6008-2-6)
Physical characteristics
Camera weight (with battery)	850g
Camera dimensions (L x W x H)	245x125x120mm
Tripod mount	UNC1/4”-20
