WLS307C double light fusion night vision telescope

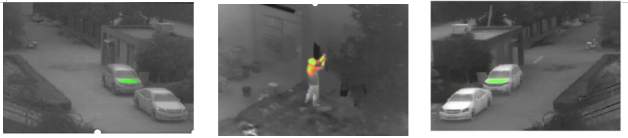

WLS307C double light fusion night vision telescope is to process the images of infrared thermal imaging and low light level sensor by algorithm, and fuse the images of the two in a certain proportion to highlight the thermal target. By observing the fused image, users can not only see the goal of clearing heat, but also see the outline of the environmental background, and can obtain the observation goal quickly, accurately and clearly. This product is suitable for public security, armed police, military and other special forces, to achieve all-weather effective observation of specific areas or targets, and quickly find, identify and track concerned targets; It is also suitable for industries such as fire fighting, electric power and petroleum to realize day and night monitoring of specific areas or equipment.

Product features

(1) It has the advantages of low light level and thermal imaging, and there are many observation modes to choose from.

Selection can better meet the observation needs of different scenes and different personnel.

(2) The observed information is richer, the details are more perfect, the scene is easier to understand, and the effective detection and recognition distance is farther;

(3) The observed target is more obvious, which is beneficial to detect the target faster and more accurately under the hidden camouflage background, especially using the image fusion color night vision mode;

(4) The observed image is more natural and more in line with the habits of human eyes, which can obviously improve the target recognition performance of human eyes and reduce fatigue.

(5) It can meet the needs of all-weather operations, and can be observed and used in the dark, completely dark closed environment and bad weather conditions;

(6) Small size, light weight and comfortable and convenient use;

(7) Long continuous working hours;

(8) Good environmental adaptability, meeting the relevant requirements of GJB150.

technical parameter

Infrared range (same day and night)
detection range	To people (1.8m0.5 m)1470m	To the car (2.3m2.3m)4510m
Recognition distance	To people (1.8m0.5 m)368m	To the car (2.3m2.3m)1128m
Recognition distance	To people (1.8m0.5 m)184m	To the car (2.3m2.3m)564m
Infrared lens
focal distance	50mm lens
Angle of view	12.4£7£
infrared detector
Detector type	Uncooled focal plane array detector
effective pixels	640x512
spectral region	8 - 14 ǌm
Noise equivalent temperature difference	40mK
frame frequency	50Hz
SNR	56DB
Nonuniformity correction	automatic/Manual correction
image processing	Digital image detail enhancement (DDEé
Digital zoom	1~8 times
Low light range
detection range(intensity of illumination 10-1 lx)	To people (1.8m0.5 m)1470m		To the car (2.3m2.3m)4510m
Recognition distance(intensity of illumination 10-1 lx)	To people (1.8m0.5 m)368m		To the car (2.3m2.3m)1128m
Recognition distance(intensity of illumination 10-1 lx)	To people (1.8m0.5 m)184m		To the car (2.3m2.3m)564m
Low light lens
focal distance	35mm
Angle of view	12.4£7£
Detector type	Low illumination color CMOS detector
Low light detector
Detector size	6um
effective pixels	1280x720
dynamic range	76DB
frame frequency	50Hz
SNR	intensity of illumination 10-1 lx 60db
image display
model	OLED high definition binocular display
resolution ratio	1024x768
Image polarity	white heat/Black heat/low light/fusion picture-in-picture display/fusion color
memory function
Built in storage	32G TF card
quick time	AVI
trait
Continuous working time	sevenhour
Overall weight	1.51kg

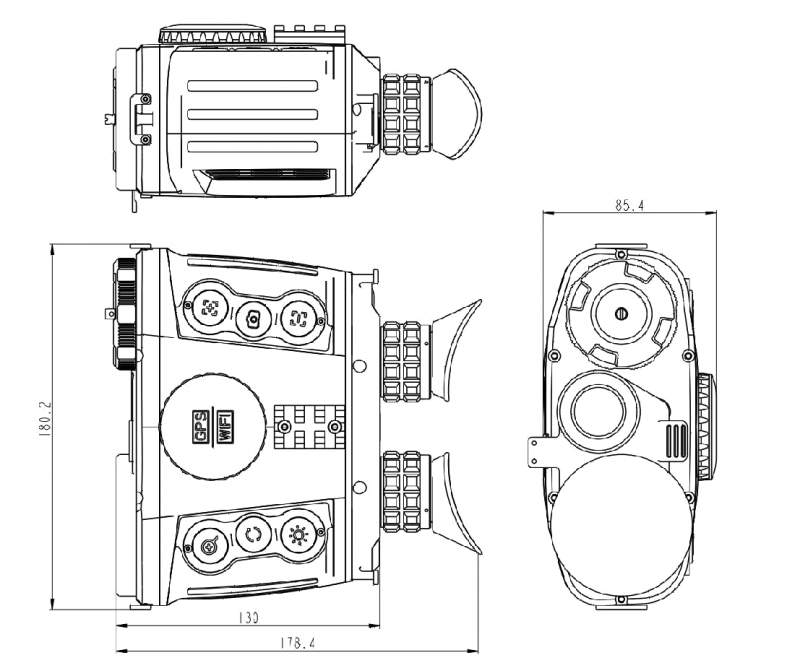

Overall machine size	180.2mmX178.6mmX85.4mm (length x width x height)
joggle/interface
power source	DC12V
video output	VGA
data interface	USB2.0
control interface	RS232
environmental index
Working temperature	-40¦k+55¦
Storage temperature	-50¦k+60¦
humidity	ɑ90å
the protection grades	IP67
Positioning function
Electronic compass	azimuth accuracy 0.5 pitch angle accuracy 0.3.
GPS	positioning accuracy 10m (within 1km), 20m (1km-2.5km))
WIFI	support
