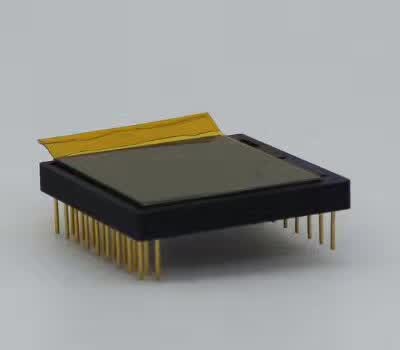

uncooled detector
product features
Small size, low power consumption, good image uniformity and various interfaces.
technical parameter
TE-EV1 |
TE-EQ1 |
||
Detector type |
Uncooled microbolometer |
||
Image format and detector size |
640x480, 17㎛ |
384x288, 17㎛ |
|
Minimum thermal sensitivity (NETD) |
50mK / F#1.0, room temperature |
||
Working band |
8 to 14㎛ |
||
Power Supply |
DC 5V |
||
function |
|||
Video output format |
NTSC/PAL, USB, LVDS, CAMERALINK |
NTSC/PAL, USB, LVDS, CAMERALINK
|
|
control |
RS-232 @ baud rate 115200, I2C |
||
Analog image frame rate format |
30Hz or 25Hz |
||
Equipment startup |
|||
control command |
USB2.0, RS-232, I2C |
||
|
Physical dimensions (W x H x D) |
42.5mm x 44.6mm x 41.1mm (Type A) 42.5mm x 44.6mm x 35.9mm (Type B) |
42.5mm x 44.6mm x 42.7mm (Type A) 42.5mm x 44.6mm x 37.5mm (Type B) |
|
Movement weight |
|||
Working temperature |
-20°C ~ 65°C (-40°C ~ 65°C optional ) |
||
storage temperature |
-40°C ~ 85°C |
||
Currently supported temperature measurement |
-20° |
||
